KaYoTom D08 Global Walkie-Talkie User Guide

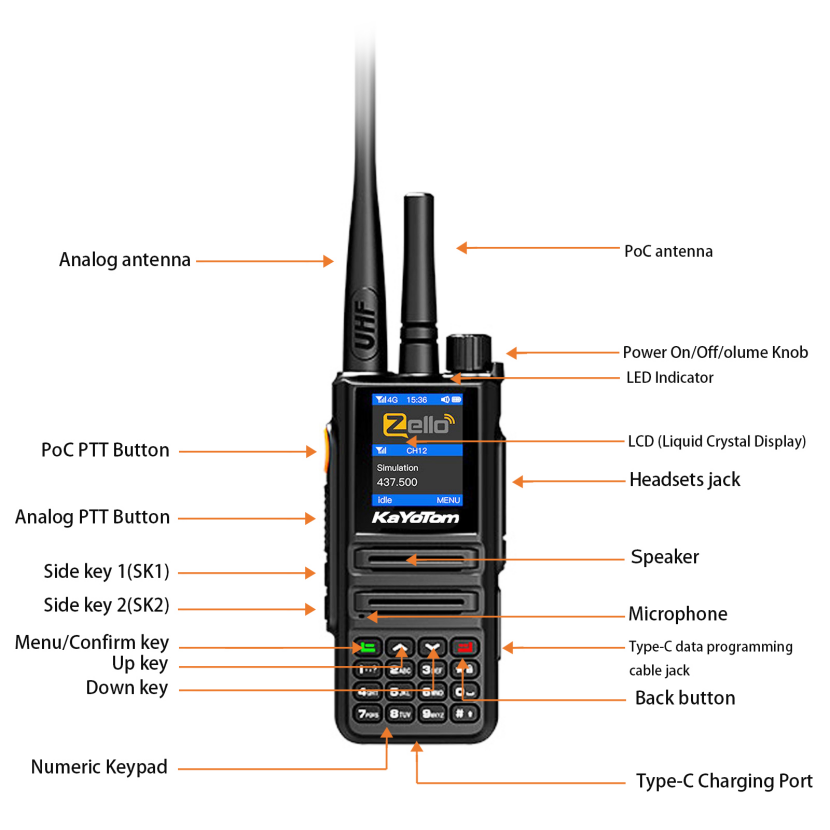

1.RADIO OVERVIEW
2.OPERATION
1.Turning on Your Radio /To Adjust Volume
Turn Power On/Off/Volume Knob clockwise to turn the radio on, counterclockwise to turn
the radio off.
To Adjust Volume
- Rotate Power On/Off/Volume Knob clockwise to increase the volume.
- Rotate Power On/Off/Volume Knob counterclockwise to decrease the volume. Do not
hold the radio close to your ear. If the volume is set to an uncomfortable level, it can hurt
your ear.
2.PoC PTT Button
Push this button to transmit on Poc communicate, release it to receive.
3.Analog PTT Button
Push this button to transmit on Analog channel, release it to receive
4.SK1
Default settings are:
Press Key: An arrow pointed, switch between on PoC and analog mode on dispaly,
Press & Hold Key: Enter system settings
5.SK2
Default settings are:
Press Key: Turn off screen, turn on screen
Press & Hold Key: Activate Emergency Alert （SOS）
Default settings are:
Press Key: in standby enter menu page,on Menu page mean confirm
6.Menu/Confirm key
Default settings are:
Press Key: in standby enter menu page,on Menu page mean confirm
Press & Hold Key: Enter settings
7.Up/Down key ：
Menu Page：scroll up and down
Home Page arrow point to analog mode：add and subtract frequency or Channel switch
8.Back button
Return to the previous page or exit
9.Numeric Keypad
According to the arrow pointing:
Pointing to PoC Mode：input number,enter dialer interface
Pointing to Analog Mode：on frequency mode input number,pop up the interface for inputting frequency
*key：Press & Hold keypad locked
#key：Press & Hold Switch to analog mode
On frequency mode:adjust the frequency or input the frequency
On Channel &frequency Mode:Display Imported or channel list Newly added
channels
On Channel Mode:Display Channel name
3.LCD display
①（PoC information/（SIM1，SIM2）、WIFI,GPS，Bluetooth, arrow, battery level, time）
② PoC display Zone/(Group/Member/Call Status)
③ Display analog signal, sub tone, power, bandwidth
④ Analog frequency display zone
On frequency mode/Channel frequency mode：Dispaly TX/RX frequency
On Channel Mode:Display Channel name
⑤On home page display the status of analog transmit

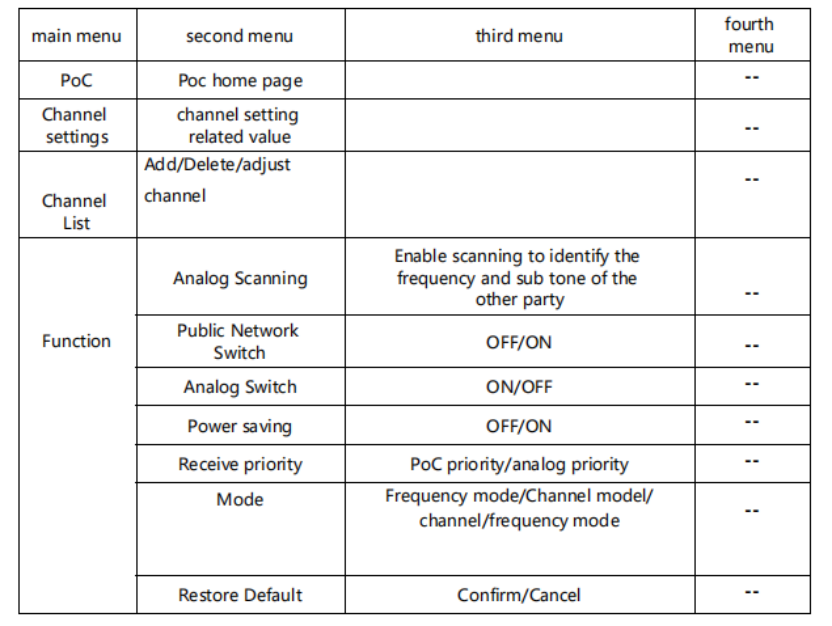

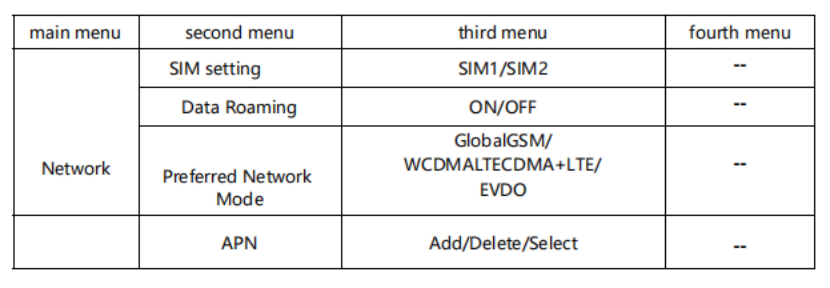

Menu▼
On home page,Press【menu】,enter menu settings，scroll up and down button,
Select related menu，Press 【Back Button】exit and back to home page.

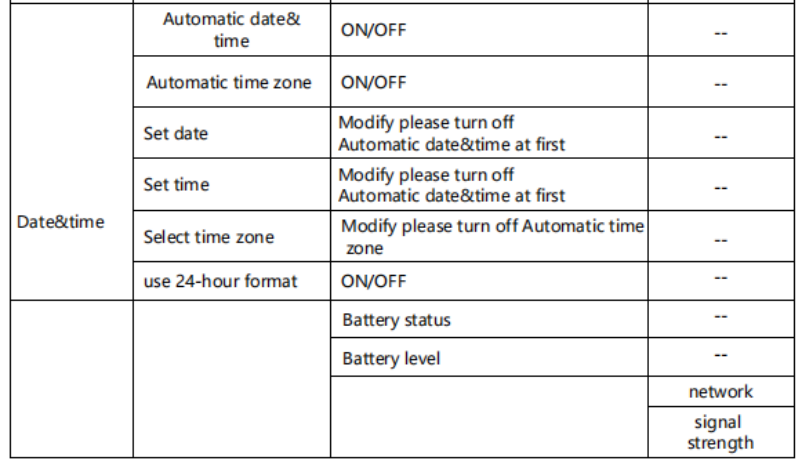

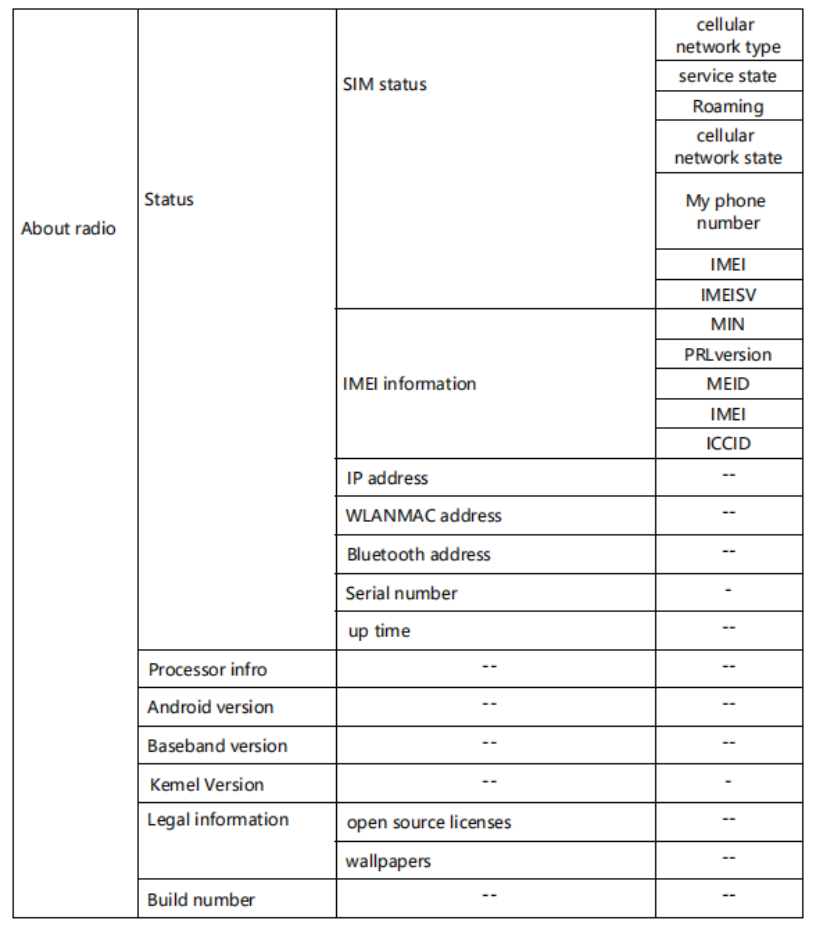

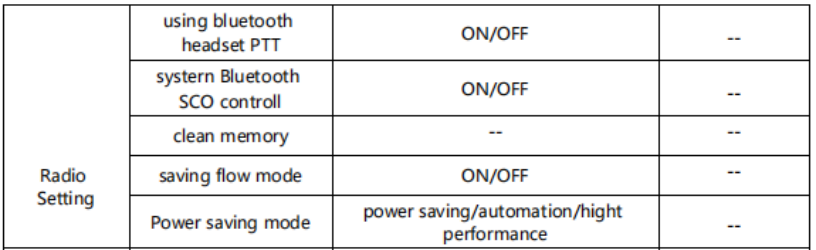

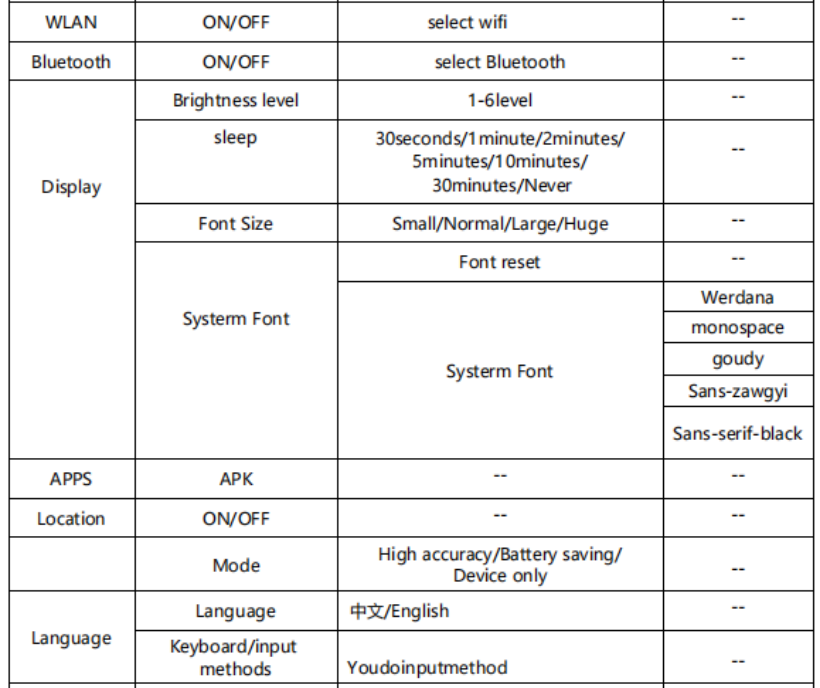

Settings
Press & Hold SK1 : Enter system settings
